Commander-AT5 Model

The Commander-AT5 is the first industry Battery Portable pc computer offering 3 slots with multi-slot expansion built-in. The keyboard folds in front of the display and also has an integrated touch pad on a rugged portable chassis.

  • Chassis: Proprietary Micro-ATX
  • Slots: 3 Full length Slots
  • Ports: Serial Port Available with older O.S. installations
  • Drive Bays: (2) x 2.5" Removable, (1) x Slim DVD-RW Drive, (1) x M2 480GB SSD
  • Dimensions: 16.4" x 13.8" x 6.5" Inches
Request Quote Custom Build Request


Specifications:

Motherboard: Proprietary Micro-ATX
Slots:

3 PCIe (x8, x8, x1) full-length expansion slots

Option: 2 PCIe (x16, x1) full-length expansion slots

Option: 1 PCIe (x16), 2PCI full-length expansion slots

Drive Bay: (2) x 2.5" Removable, (1) x Slim DVD-RW Drive, (1) x M2 480GB SSD
LCD Display:

17.3” 1920x 1080 resolution LCD Display

Option: 17.3” 3840x 2160 resolution LCD Display

Video: Intel GM45 Integrated Function
Processors:

Intel Core i5-9500E (3.00 GHz) Processors

Option: Intel Core i7-9700E (2.60 GHz) Processors

Keyboard/Mouse: 108 keys, multi-languages/touchpad, RJ45 connector
Case Size: 16.4" x 13.8" x 6.5" Inches
Battery or Power Supply:

2x 95W Li-ION battery pack (Hot-Swappable)

100W Battery System (12V@7A, -12V@0.3A, 3.3V & 5V@10A)

400Watt 110-240V AC Power Supply

Case Weight: 17.64 lbs
Speakers: Line-in, Line-out, Microphone (Built in Speaker)
Interfaces:

1x RS-232/422/485 Port

2x RS-232 Ports

2x USB 2.0 Ports, 1x VGA Port

4x SATA 3.0Gb/s Ports (3x Free), 1x EIDE

Dual Intel Gigabit LAN

Carrying Case: Padded carrying case with wheels
Cooling: 80mm cooling fan
Case: Aluminum alloy chassis
Option: Hard Shell Shipping Case
Battery Power Output:

100W Output Rating 8.25 Amps Current

12V @ 7A; 5V & 3.3V @ 10A; -12V @ 0.3A

190 Watt-hours Smart Packs Battery (Hot-Swappable)

Simultaneous Charging Level III

AC-DC Power Adapter (18V, 5.56A)

Software monitoring/control software (Microsoft Windows OS)

Battery Operation Time:

Idle: ~4.5 Hour (*LCD backlight on in Windows OS desktop*)

Full Load: ~3.7 Hour (*based on system only,)

Full Load: (*light on and both CPU core on full load,)

Full Load: (*and 1 HDD performing in Windows OS*)

Charging: ~2.5 Hour (*From Empty to Full*)

Oper. Temp. 0°C - 60°C (32°F~140°F)
Storage Temp. -20°C ~ 80°C (-68°F~176°F)
Relative Humidity: 10 - 90% (non-condensing)
Shock (operating, all axes): 15g
Vibration (operating, all axes): 10-500Hz (0.4 Grms)
Compliance: CE/FCC Class B, RoHS
Descripton:

The Commander-AT5 is the first industry notebook form factor computer offering 3 PCI-E slots with multi-slot expansion built-in. The highly mobile laptop style unit boasts battery capacity that can last up to 4 hours to accommodate data acquisition and test & measurement peripheral cards. With high memory capacity, processing power and multi-drive capability, the system will outperform, out-expand and out-maneuver any portable computer in the market today.

The Commander-AT5 integrates 2 high capacity Li-ion battery packs into the system. The smart battery system is light in weight and the battery are hot swappable to allow continuous replenishing of power. The system can operate in a both battery power and AC power simultaneously or independently. The Commander-AT5 can operate for 4+ hour when fully charged and recharging the battery will take half the time. Customer can charge and operate the unit at the same time during operation seamlessly.

The unique size, expansion, battery portability and processing power included in the system offers a unparallel of multi-slot mobile computing. No longer is a power outlet required, and no longer is a sacrifice between mobility and processing power be needed. If you decide to upgrade to a Solid State Hard Drive, this unit will be one of the most rugged portable units available due to minimal moving parts. The light weight and rugged Commander-AT5 is here to provide what has been missing in the market.

Images:

battery portable

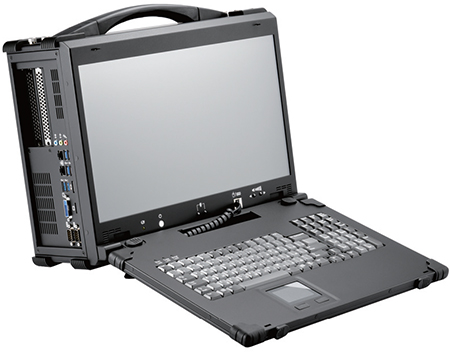

Left Image


battery portable

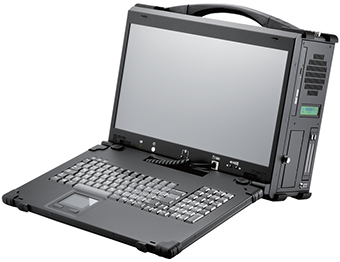

Right Image


battery portable


Internal Image

Download:

Download Datasheet
